제품 상세 정보:
결제 및 배송 조건:
|
| 특징: | 착용 저항 | 재료: | 단단하게 한 유리 |
|---|---|---|---|
| 마무리: | 육체적으로 완화시킵니다 | 두께: | 3.2 밀리미터 |
| 기능: | 장식 글라스 | 용법: | 문 패널 |
| 형태: | 편평한 | 판매 후 서비스:: | 온라인 기술 지원 |
| 하이 라이트: | 냉동기를 위한 강화 유리 냉장고 문 Panels,3.2mm 냉장고 문 Panels,3.2mm 맞춤 패널 |
||

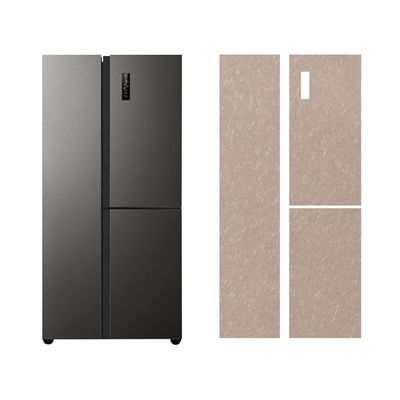

Wear Resistance Decoration Glass Refrigerator Door Panels 3.2mm Thick
Description of Refrigerator Door Panels:
When choosing refrigerators, air conditioners and other household appliances, people pay more and more attention to the appearance, because people will pay more attention to their collocation with the whole home, the overall coordination, color consistency and so on. This is especially true for household refrigerators, so more and more people will choose high-end color crystal glass door refrigerators. The unique mirror effect of glass door is needless to say, because its main body is made of toughened glass, so its scratch resistance and wear resistance are strong. Not only will the daily scratch and collision not leave traces, but also it will not be easily broken when encountering a strong frontal collision; in addition, the unique pigment layer inside the glass door allows it to have more color and texture effect than the metal panel. These advantages make the glass door refrigerator and steel door together, can better highlight its advantages.
| Thickness can choose | 3mm,4mm,5mm,6mm |
| Glass edging | Flat polish, pencil polish, miter, bevel, O.G. bull nose and etc |
| Features | Decorative glass |
| Quality Standard | Global Electrolux oven glass Standard, GE standard, B / S / H Standard, British BS3193 Standard, American ANSI Z97 Standard, Brazil NBR13866 and etc |
| Management System | ISO 9001 2015, ISO 14001 2015 |
| Color | Clear, Ultra Clear, Various Green, Blue, Gray, Brown |
| Package | Package with foam board, cardboard boxes, wooden crates, also can pack according to customer’s requirement |
UMI on refrigerator door panels customization
• We can produce parts with various colors as per customer’s demand;
• We can design the pattern as per customer’s demand;
• We can produce shaped parts as per customer’s requirements.
1) Small Stainless steel brushed pattern:
2) Stainless steel brushed pattern like snowflake
3) Three-dimensional effect:
4) Semitransparent frosted glass
5) Wood-grainy pearl white
6) Colorful glittering effect:
Toughened glass for refrigerator door panel:
Toughened tempered glass is often used in applications where using standard glass could pose a potential danger. Toughened tempered glass is stronger than standard glass and does not shatter into large shards when broken. This is important, because small shards can greatly minimize potential danger in the case of a break. Feihong set a standard of the fragment state in 50*50mm to judge if it’s qualified toughened tempered glass based on global Electrolux oven glass Standard, GE standard, BSH Standard, British BS3193 Standard, etc. Manufactured through a process of extreme heating and rapid cooling, toughened tempered glass is much harder than normal glass.
Quality Inspection Item
1, Evenness: bow shape ≤ 0.5%; there is one place (one peak and one trough) allowed for every 610mm of waveform;
2, Granularity test: two pieces of tempered glass are selected for each batch of glass to be tested, and the place where the center of the long side of the glass plate is 13mm higher than the bottom edge is taken as the breaking point (see figure). After the glass is broken, the two areas with the largest granularity are selected in a 50mm*50mm box for counting. The number of crack-free particles completely contained in the 50mm*50mm box must be ≥50, and the largest particle size must be ≤ 15 mm * 8 mm.
3, Impact test: drop a steel ball with a diameter of 51mm and a weight of 535g from the glass surface 648mm, and impact the center of the glass plate once to ensure that the glass does not break.
Packaging Details
1. Interlay paper between two sheets.
2. Seaworthy wooden crates.
3. Iron/Plastic belt for consolidation
FAQ
Q. Are you a factory or trading company?
A. We are professional tempered glass factory with designing, manufacturing and exporting over 17 years. We have well-found glass processing facilities and professional technology to guarantee the quality and service
Q:Can you do the production as customized?
A:Yes, we could produce the glass according to your requirements. OEM and ODM is welcome.
Q. How do I get tempered glass price?
A. Kindly advise us the glass usage, glass thickness, size, quantity, whether need to further process and other detailed requirements etc, We will work on it and reply ASAP. The more details you provide the more accurate and quicker you get the quotation.
Q:Do you provide sample? Is it free or extra ?
A:Yes, we can provide the samples . All the sample cost will be returned after you have placed the appropriate order.
Q. How do you control tempered glass quality?
A. High quality raw material float glass, such as Yaohua Pilkington Glass, etc.
B. Automatic tempering furnace, automatic cutters, double edge grinding machine to reduce defective rate.
C. Professional inspection team and devices during and after production to make sure 100% compliance with the request of clients.
D. Professional packing team to ensure glass safe.
E. After sales service to guarantee the quality.
