제품 상세 정보:
결제 및 배송 조건:
|
| 기교: | 육체적으로 완화시킵니다 | 재료: | 단단하게 한 유리 |
|---|---|---|---|
| 애플리케이션: | 냉장고 | 두께: | 3.2 밀리미터 |
| 구조: | 솔리드 | 유리제 색깔: | 공간 |
| 상태: | 새롭습니다 | ||
| 하이 라이트: | 육체적으로 템퍼링된 강화 유리 빙붕은 크기에 잘립니다,CCC가 상부 선반을 동결하여 크기,CCC 냉동고에 유리 선반 삭감을 강화했습니다 |
||

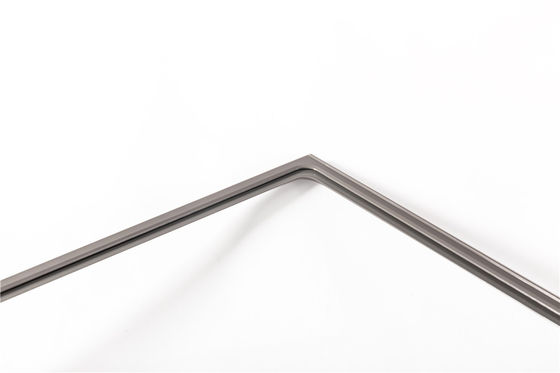

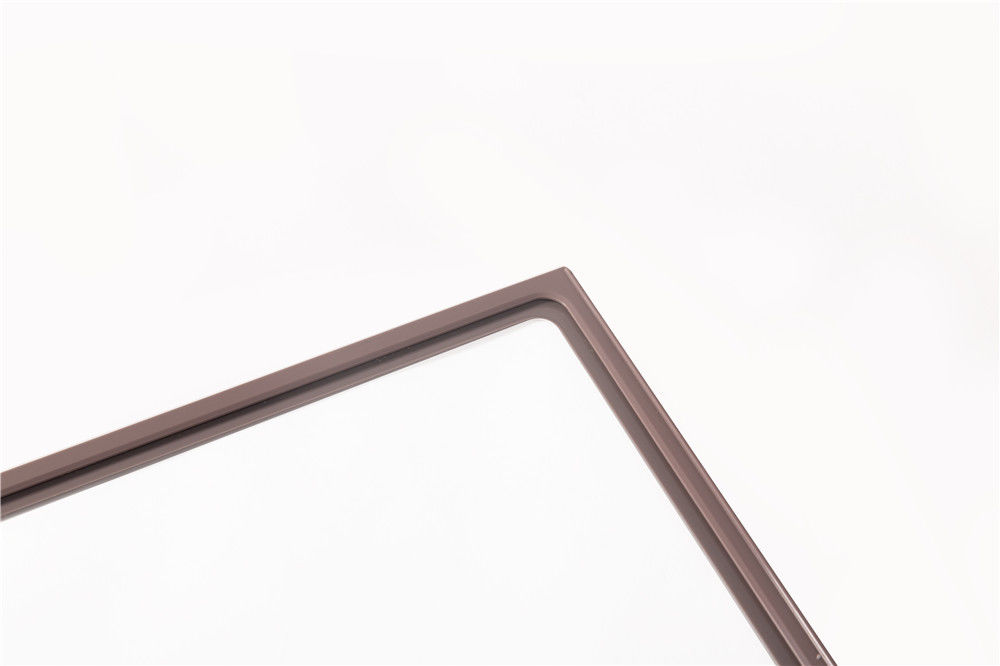

Toughened Glass Shelves In Refrigerator Household Appliance Parts Replacement
Description of Toughened Glass Shelves In Refrigerator:
This refrigerator door shelf attaches to the inside of the refrigerator door, typically holds jars and bottles, and is generally the middle shelf for your food door. The shelf is plastic will cream, blue, green, grey or dark grey, and approximately 24 1/4 inches wide x 3 3/4 inches deep. Other sizes is also available.

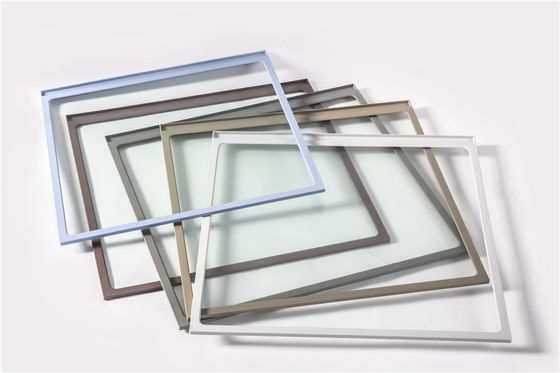

Various frame colors:
Most of the dyeing raw materials of plastics are transparent, ivory yellow or milky white, while precision plastic parts often have various requirements for color. For example, white and black household appliances will consider preventing light leakage and eliminating stray light, while appearance parts often use different colors according to design requirements. Therefore, it is necessary to dye the plastic products before processing. Extrusion granulation coloring method: extrusion granulation method is to mix the natural color particles and colorants evenly, add them into the extruder to plasticize and mix evenly, and finally extrude, cool and cut grains to obtain the required colored particles.
This is the raw material for the toughened glass shelves in refrigerator.
|
Function:
|
Decoration |
Dimensioin |
As clients' drawing |
| Certificate: | CCC | Other Name: | Fridge Glass Tray |
| Warranty: |
1 YEAR
|
Shape |
Flat |
| Condition | New | Glass Type: | Float Glass |
Toughened Glass for toughened glass shelves in refrigerator manufacturing process:
Step 1 Float glass is cut to the desired size.
Step 2 Prior to the tempering process, the cut glass is checked for flaws such as cracks, bubbles, and inclusions. The presence of these imperfections can cause breakage during the tempering process.
Step 3 The glass is washed to remove dust, dirt, and debris that could interfere with the thermal tempering process.
Step 4 After it has been cut, checked for flaws, and washed, the glass travels either in batches or in a continuous feed through a furnace, where it is heated at temperatures over 600 degrees Celsius.
Step 5 After the heating process, the scorching piece of glass undergoes a cooling process. During this process, the glass receives high-pressure blasts of cold air from varying angles for about three to 10 seconds. The process, called “quenching,” cools down the surface of the glass much faster than it does the center. Because of this, the interior zone of the glass stays in tension while the surface goes into compression. This combination of competitive stresses is what makes tempered glass so strong.
Supply ability toughened glass shelves in refrigerator
Supply Ability: 1,250,000 Square Meters per Month
| Quantity(Square Meters) | 1 - 100 | 101 - 1000 | 1001 - 10000 | >10000 |
| Est. Time(days) | 7 | 15 | 20 | Negotiable |
Quality Inspection
1, When the first 100 pieces of finished toughened glass shelves in refrigerator are packed, the quality inspector shall inspect them at the inspection point of finished products.
2, The product will be inspected two times casually every shift.
3, Before the toughened glass shelves in refrigerator are packaged or after the finished product is repaired, the quality inspector shall inspect it at the finished product inspection point.
4, After the toughened glass shelves in refrigerator are packaged, the quality inspector will inspect it at the finished product inspection point.
5, If the finished product is stored for more than one month or for other special reasons, the warehouse administrator shall inform the quality inspector on duty to inspect it at the delivery site (visual inspection according to the standard and packaging scheme is in conformity).
Safe packing to keep safe of toughened glass shelves in refrigerator:
1. Interlay paper between two sheets.
2. Seaworthy wooden crates.
3. Iron/Plastic belt for consolidation
OEM Service :
OEM glass is avaliable here, just tell us the details of the specification and other special manufacturing technique for the toughened glass shelves in refrigerator, and you can get the most satisfied product from us.
