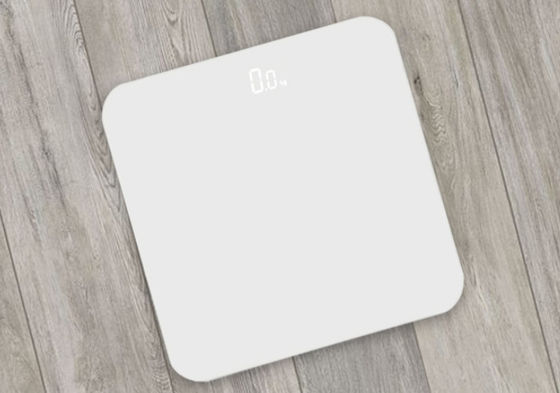

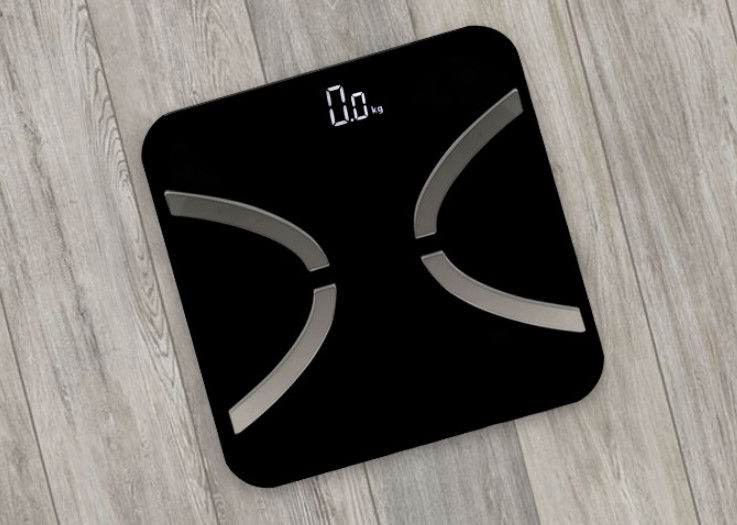

Impact resistance electronic Body Weighing Scale Glass Various Colors

Description of Weighing scale glass

Weighing scale glass is made of toughened glass. Toughened tempered glass is often used in applications where using standard glass could pose a potential danger. Toughened tempered glass is stronger than standard glass and does not shatter into large shards when broken. This is important, because small shards can greatly minimize potential danger in the case of a break. Feihong set a standard of the fragment state in 50*50mm to judge if it’s qualified toughened tempered glass based on global Electrolux oven glass Standard, GE standard, BSH Standard, British BS3193 Standard, etc. Manufactured through a process of extreme heating and rapid cooling, toughened tempered glass is much harder than normal glass.

Please Note :

The specification of weighing scale glass should be confirmed before put the sheet glass into the toughening furnace, the

tempered glass can't be cut anymore after out of the toughening furnace, otherwise it will be broken.

Weighing scale glass manufacturing process

Toughened glass is thermally stronger than the normal glass. The glass undergoes intense stress due to which, the strength of glass increases. This glass is made through thermal tempering process where the annealed glass is heated at or above 720 degrees and soon after it reaches the heating point, cooling process is performed. The glass thus becomes strong and stressed.

Advantages of tempered glass for weighing scale:

Impact resistance: the impact strength of tempered glass with the same thickness is 3-5 times of that of ordinary glass, and the bending strength is 3-5 times of that of ordinary glass. We often use, store and clean dishes in the kitchen. It's hard to avoid rubbing kitchen appliances. The use of toughened glass with high impact resistance can enhance the durability of kitchen appliances.
Good permeability: tempered glass generally has more than 91% visible light transmittance, with crystal like quality. Modern home decoration pays more and more attention to the sense of design. The kitchen appliances made of toughened glass can improve the overall aesthetic feeling of the kitchen.

Custom Specifications of weighing scale glass
We temper glass right here in our horizontal continuous tempering furnace. That means we can craft the glass to your exact specifications. Drill holes, grind edges, and make all necessary customizations to make it the perfect fit for your project, whether it’s tempered glass meant to replace fireplace door or custom tempered glass shelves. Then we heat treat it in our unique tempering furnace and ship it to you.
If you’re not sure whether or not your project or item should involve tempered or another kind of glass, feel free to contact us and we’ll walk you through some of the ins and outs regarding applicability, pricing, availability, etc.

Packaging Details

Paper interred between the weighing scale glass, packed in strong wooden crates and in safe vessel.

Features of weighing scale glass

Has the unique gloss appearance, good light transmission.
Corrosion resistance , easy clean, various colors.
Different patterns can be made. Its flower pattern or metallic effect is clearly visible and beautiful

Quality Inspection Item

1, Appearance, In the daytime (or in the case of similar brightness), observe weighing scale glass vertically for 5 seconds with naked eyes or with the aid of glasses from a distance of 50cm or a distance of one arm length. No dirt or scratch, edge and corner, printing effect.

2, Printing appearance: the weighing scale glass printing area (ink covered area) of the control panel is judged under the condition that the back has opaque cover (black background), and under the black background, it is acceptable that the front is invisible.

3, Evenness: bow shape ≤ 0.5%; there is one place (one peak and one trough) allowed for every 610mm of waveform;

4, Granularity test: two pieces of weighing scale glass are selected for each batch of glass to be tested, and the place where the center of the long side of the glass plate is 13mm higher than the bottom edge is taken as the breaking point (see figure). After the glass is broken, the two areas with the largest granularity are selected in a 50mm*50mm box for counting. The number of crack-free particles completely contained in the 50mm*50mm box must be ≥50, and the largest particle size must be ≤ 15 mm * 8 mm.

5, Impact test: drop a steel ball with a diameter of 51mm and a weight of 535g from the glass surface 648mm, and impact the center of the glass plate once to ensure that the glass does not break.
